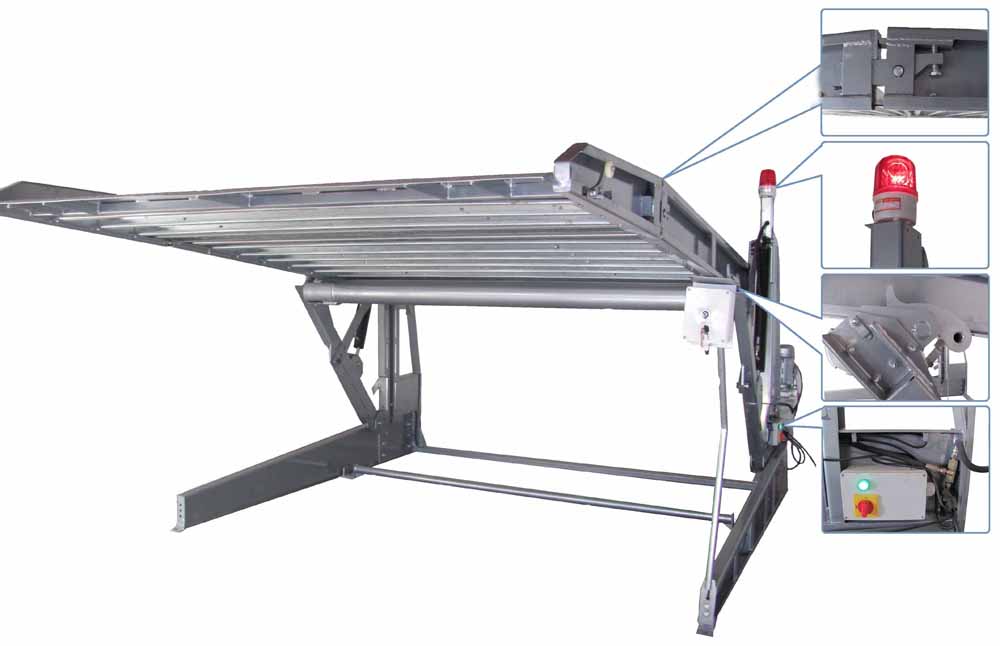

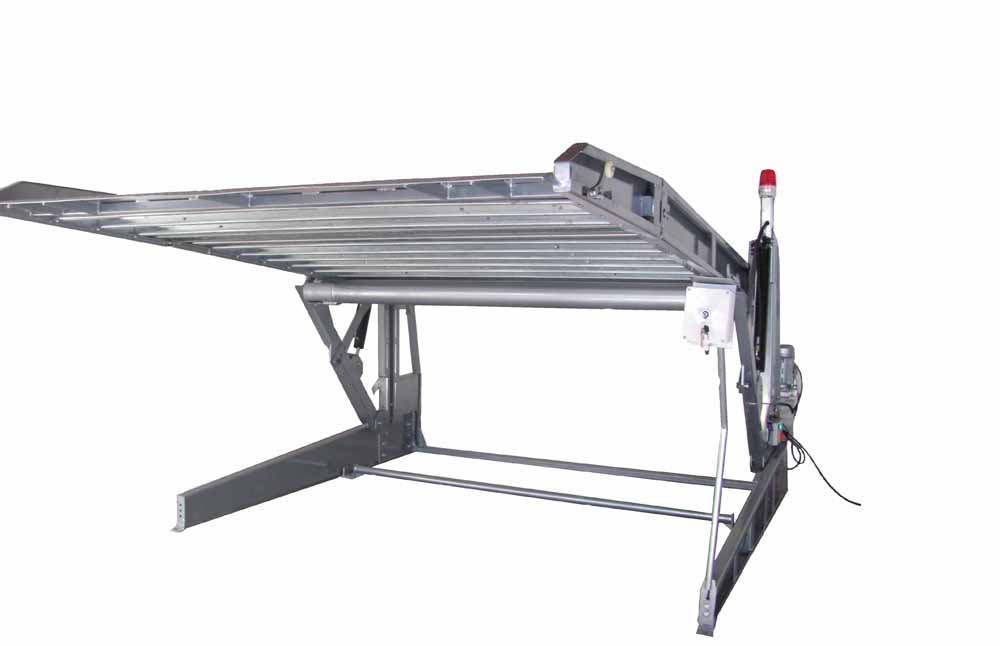

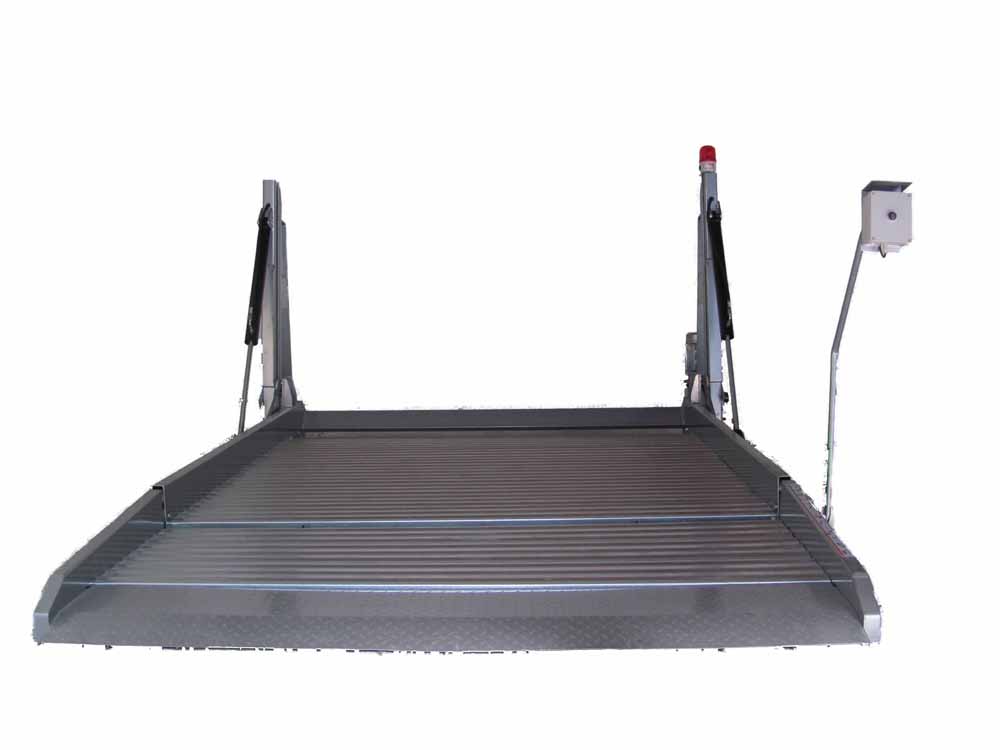

Tilt platform parking lift
tilt platform parking lift is a special in it's structure. Owing to it's platform structure, it allows to use up space of car clearance below wheels and space above car's hood.Really suits using in private garages.
Detail
Video
Features:
- This model is especially suitable for being used in places with lower net height.
- This upper steel plate of this model is inclined, which can make full use of space.
- Driven by hydraulic pressure, it can operate smoothly with low noise.

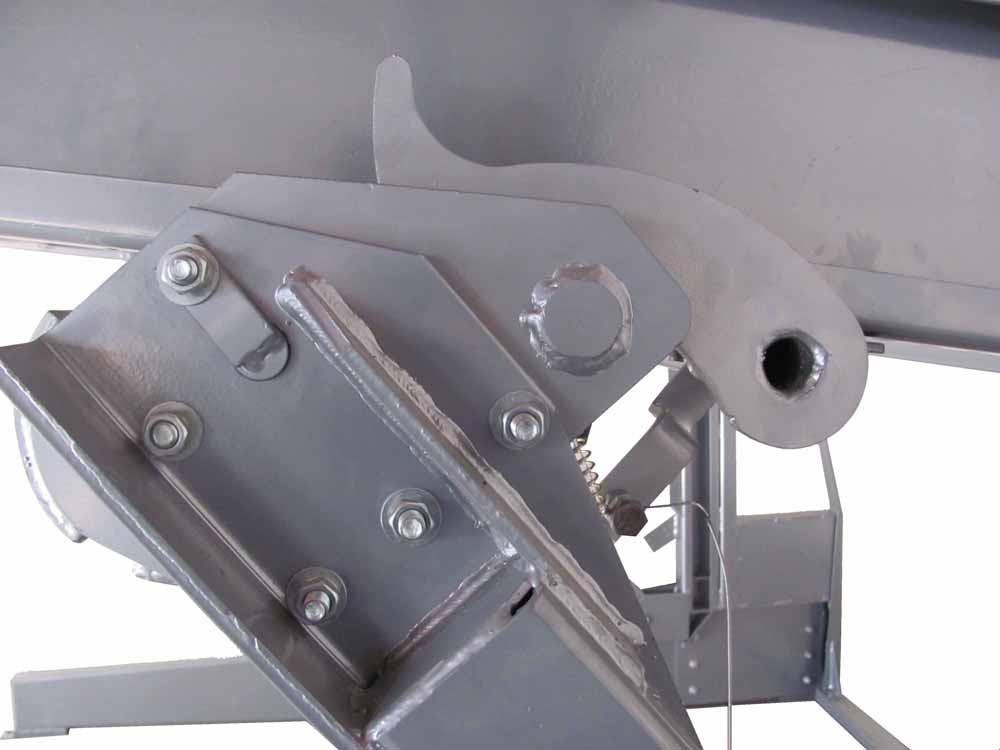

- Anti-fall Device
- It is easy to set up, without the help of civil work.
- Note: 1.N is the number of successive posts.
- W p can be decided by customers' needs, not confined to the above-mentioned three specifications.
| Platform Width | Length | 6000mm |
| Clear Height | ≥3000mm | |
| Width | 2500mm | |
| Vehicle Demensions | 5000×1850×1550mm | |
| Lifting Weight | ≦2000kg | |
| Lifting Motor Power | 1.5kw | |
| Lifting Time | 24s | |

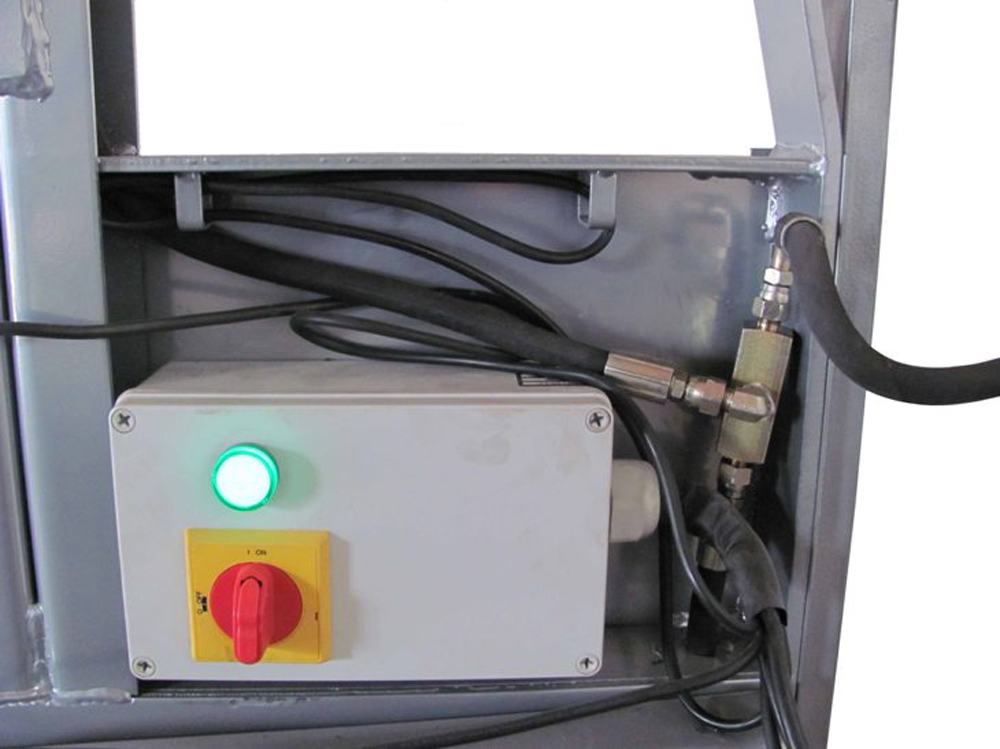

| Operation Mode | Button | |
| Driving Mode | Hydraulic | |
| Power | 380V 50Hz | |
