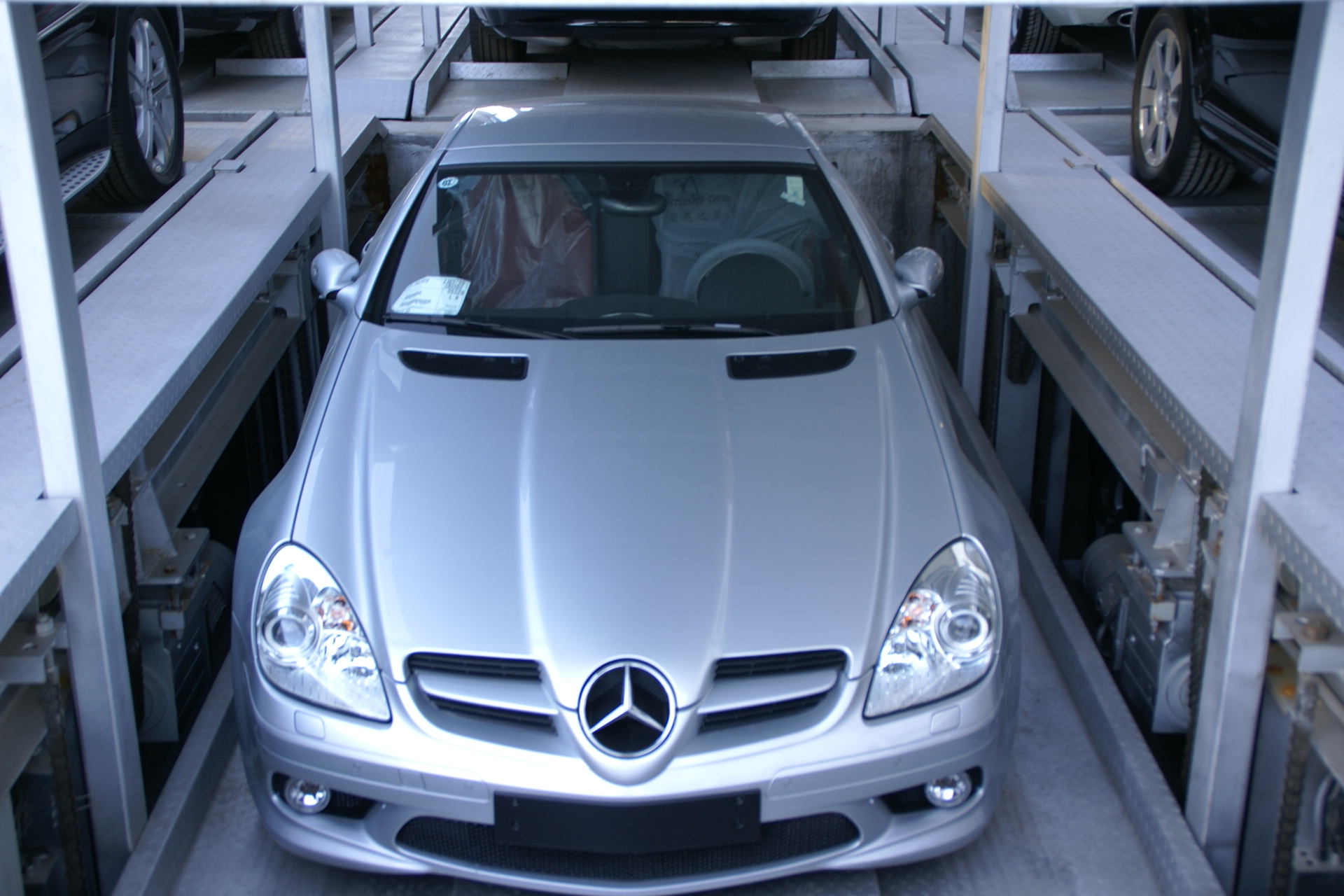

vertical underground parking system of 2-3 levels.
- This model is suitable for being built outdoors and the foundation pit should be digged. The floors and post structure should be erected underground.
- There's no steel structure building on the ground, which will not interfere with visual sense or keep out day lighting of the nearby buildings.
- .The front of the equipment must be the driveway which the driver could drive the car along and park it on the steel plate.
- The upper, middle and lower steel plates of every set of equipment are a whole and lift simultaneously
Detail
Video
|

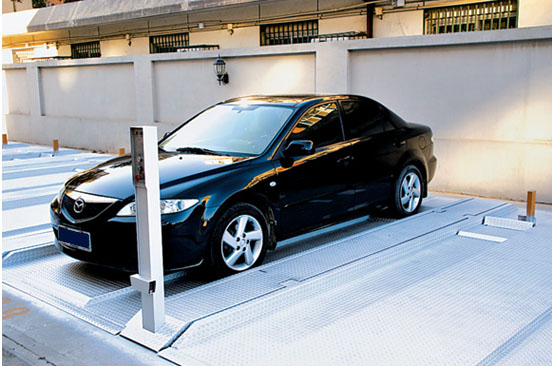

1) When the equipment lowers to the ground level, the upper steel plate runs parallel with the ground, achieving access to cars. 2) When the middle steel plate is parallel with the ground, the equipment stops and the middle steel plate achieves access to cars. 3) When the equipment reaches the top, the lower steel plate is parallel with the ground, achieving access to cars. Optional 24V electrical locking release for customer safety.
1)Anti-fall device 2)Alarm device for preventing people or vehicle from mistakenly entering 3)Alarm device for prevention of over-height and overlength of vehicles 4)Low-voltage, lack-phase, over-current and overload protection device 5)Power-off self-locking protection device 6)Emergency stop button device. Parachute valve in every cylinder provide extra hydraulic safety.
|
| Pit size (mm) | Depth | 4200 |
| Width | 2600*N+400 | |
| Length | 5250 | |
| Vehicle Demensions | ≤5000×1850×1550 mm | |
| Lifting Weight | ≦1700kg | |
| Lifting Motor Power | 3.7 kW | |
| Lifting speed | 2.5m/min | |
| Operation Mode | Button or IC card | |
| Driving Mode | ElectroMechanical (chain) | |
| Power | 380V 50Hz | |
