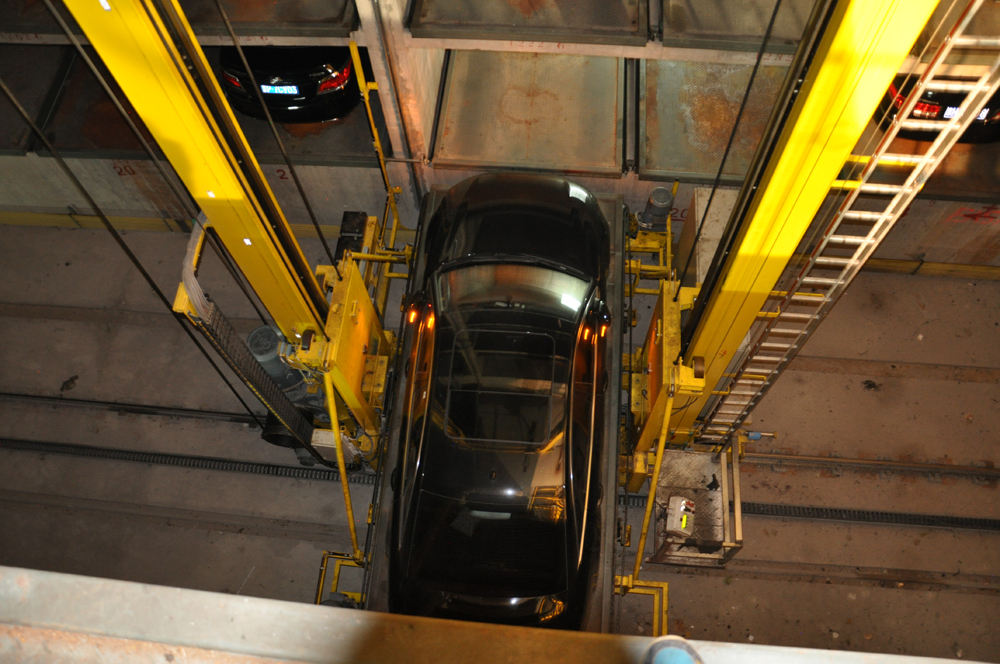

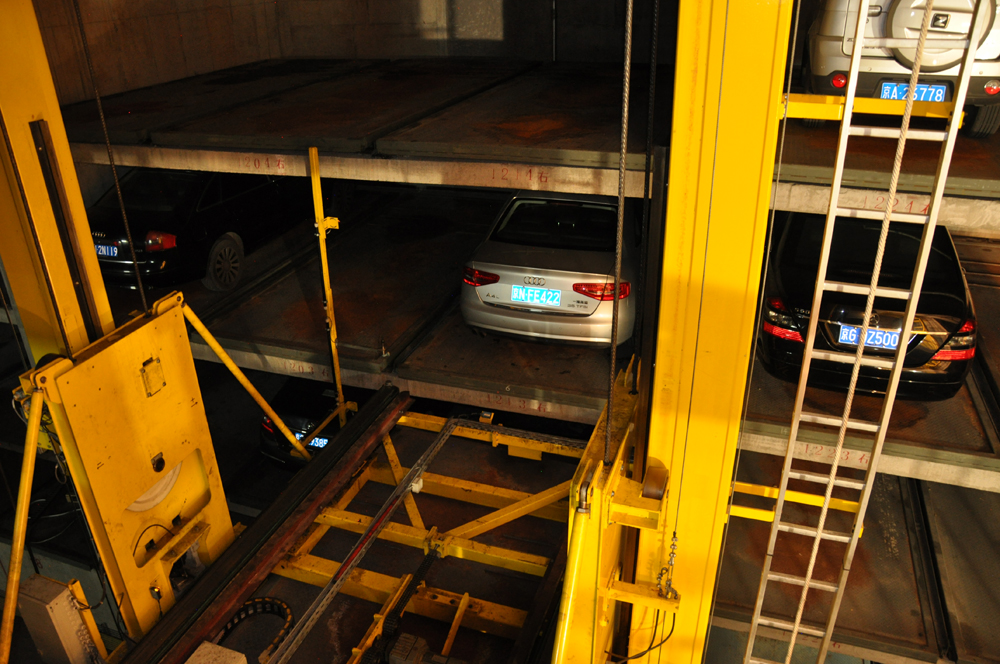

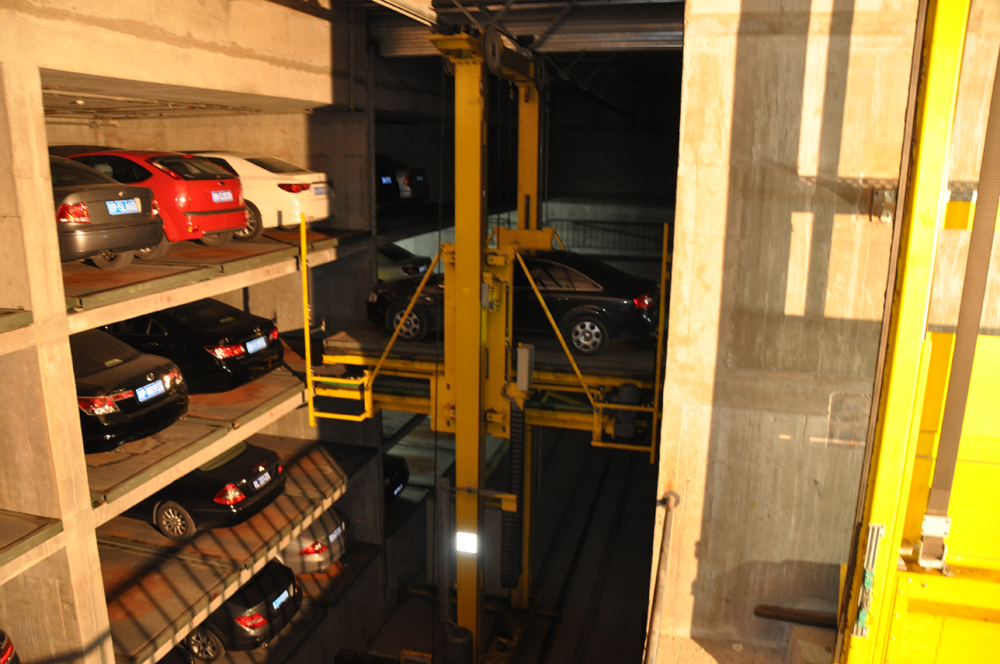

Traveling stacker parking system is an advanced fully automated parking system which is installed underground in residential or commercial areas. It can accomodate large number of vehicles from 100-1000 units.
Detail
Video
Features:
- It is controlled with PLC , accompanied with touch screen . Process of parking has never been easier.
- This kind of parking suits residential areas and office buildings , installed underground

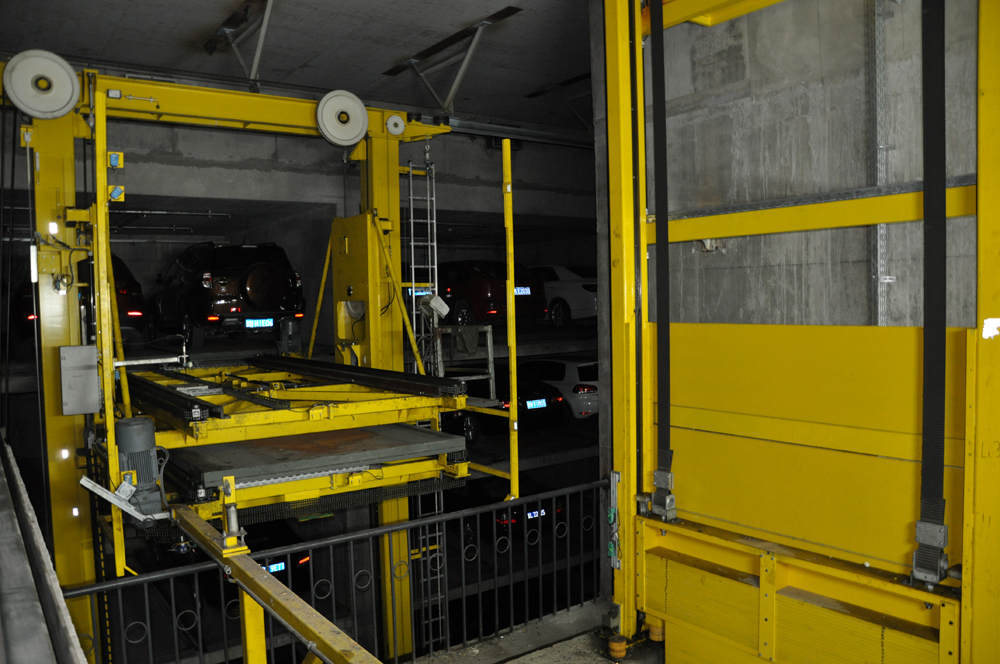

- Driven with a number of motors which move the Lift and the Traveling stack
- Multiple security detection devices are configured in order to ensure the safe and reliable operation.
- Parking cabin with an automated entrance gate is constructed on the ground
- Alarm device for prevention of exceeding height and length of vehicles
- Malfunctions are detected automatically.
Specification |
|
Control mode |
PLC ,automated |
Load capacity |
≤2000KG |
Vehicle size (mm) |
5300×1900×2050 |
Traveling stack speed |
60 m/min |
Motor power vertical/horizontal |
15 kW/ 5.5 kW |
Shuttle speed |
60 m/min |
Shuttle power |
2× 2.2 kW |
Parking cycle time |
16-30 sec |
Retrieving cycle |
16-30 sec |
Driving mode |
Electrical |
Motor voltage |
380V/50HZ |
