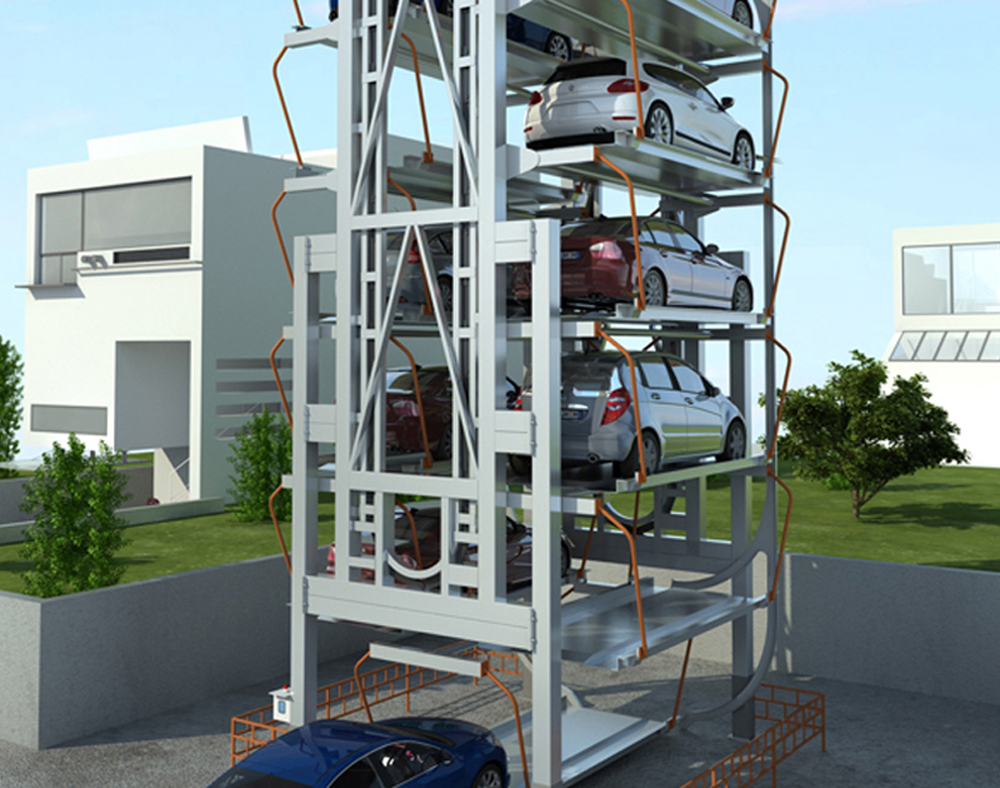

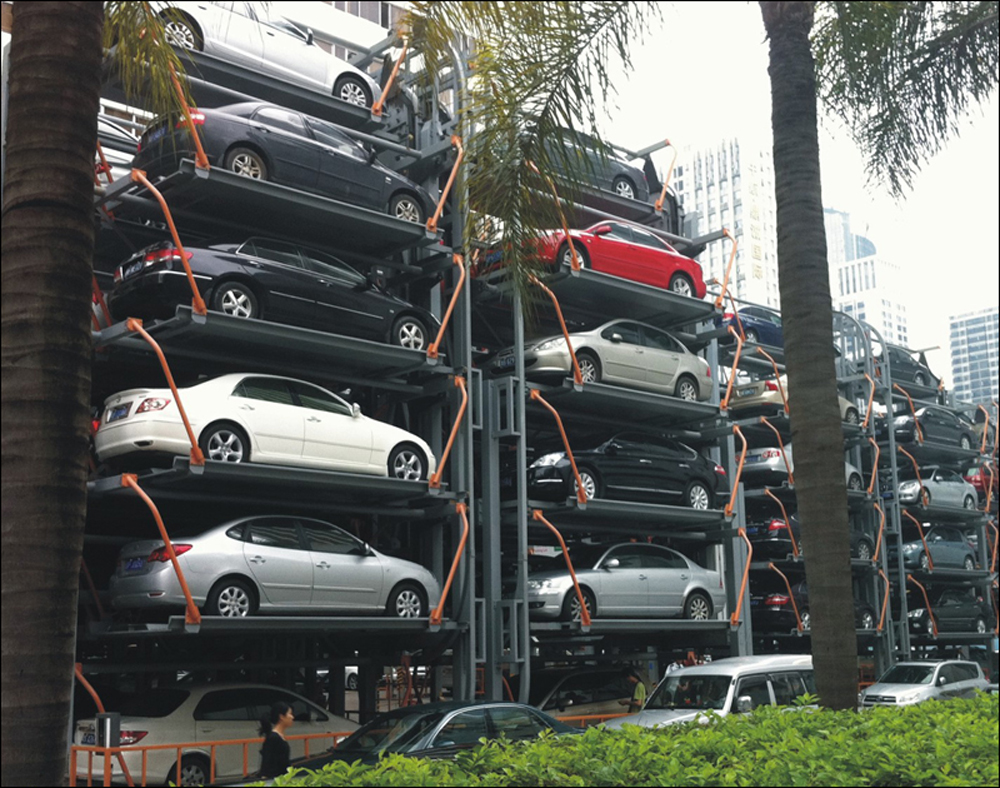

RP7011 Rotary Parking System
Rotary type is a traditional automated parking.
It may vary in number of car spaces.
It can accommodate both sedan and SUV.
In case of electricity failure it can be rotated manually.
Detail
Video
Features:
- It is controlled with PLC system, IC card and buttons
- It is mostly installed outdoors but can be installed under canopy as well.
- Driven by motors and chain system.
- Multiple security detection devices are configured in order to ensure the safe and reliable operation.
- Anti-fall device
- Alarm device for preventing people or vehicle from entering when the machinery is running.
- Alarm device for prevention of exceeding height and length of vehicles
- Low-voltage, lack-phase, over-current and overload protection device
- Power-off self-locking protection device
- Emergency stop button device.
|
Specification |
|
|
Number of vehicles |
8,10,12 |
|
Load capacity |
≤2000KG |
|
Vehicle size (mm) |
5000*1850*1550 |
|
Length |
6200 mm |
|
Height |
11060 mm |
|
Width |
5100 mm |
|
Rotating speed |
6 m/min |
|
Driving mode |
Chain |
|
Motor voltage |
380V/50HZ |
